The Heart of a Legend: Inside Mazda’s 4-Rotor R26B Rebuild
Bringing the Scream Back to Life
There is no sound in the automotive world quite like a Mazda 4-rotor. It is a high-pitched, spine-tingling scream that defined an era of JDM endurance racing.

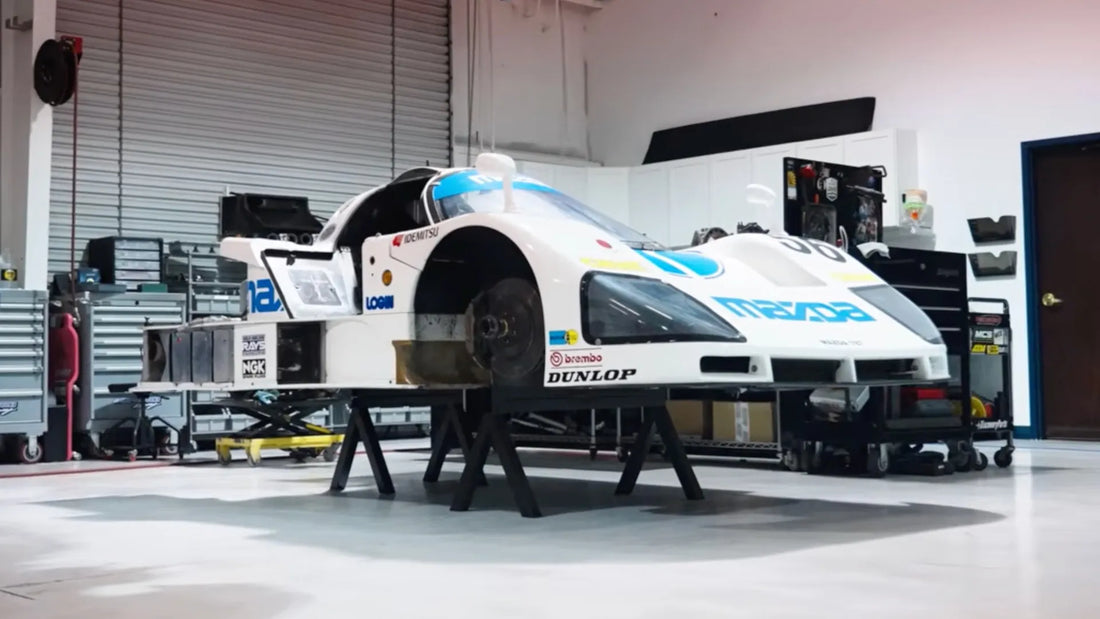

Mazda Motorsports has recently shared a rare look into the meticulous process of rebuilding the R26B engine. This is the same powerhouse that propelled the Mazda 787B to victory at the 1991 24 Hours of Le Mans.
A Technical Masterpiece
Rebuilding an engine of this calibre is not a simple task. Most of the internal components are completely bespoke and have been out of production for decades.
The R26B is a 2.6-litre monster that utilizes peripheral porting and a unique three-spark-plug-per-rotor configuration. This setup allows it to produce immense power while maintaining reliability over 24 grueling hours.
| Feature | Specification |
|---|---|
| Displacement | 2616 cc |
| Max Power | 522 kW |
| Max Torque | 607 Nm |
| Intake System | Variable length runners |
| Configuration | 4-Rotor Wankel |
The Art of the Rebuild
Precision is the name of the game when dealing with rotary tolerances. The technicians at Mazda Motorsports must measure every apex seal and side housing with extreme accuracy.
Because parts are so scarce, many components must be refurbished or custom-made to original factory specifications. It is a labor of love that ensures the 787 series continues to run at vintage events for years to come.
Variable Intake Magic
One of the most fascinating aspects of the R26B is the telescoping intake manifold. This system adjusts the length of the intake runners to optimize torque and power across the entire rev range.
Watching the assembly of the eccentric shaft and the four rotors is like watching a master watchmaker at work. It is a complex mechanical dance that results in one of the most iconic engines in JDM history.
